1 Description:

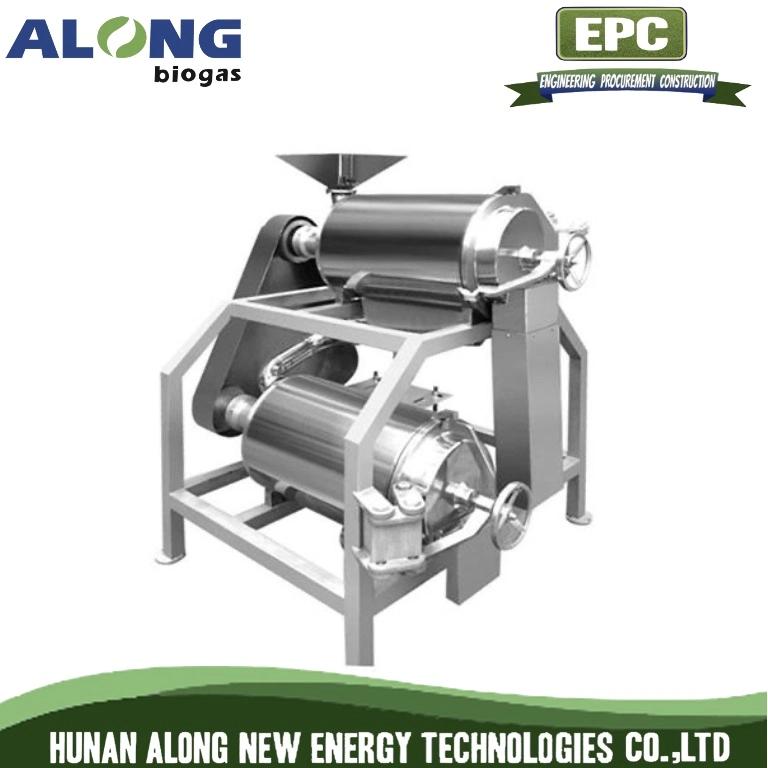

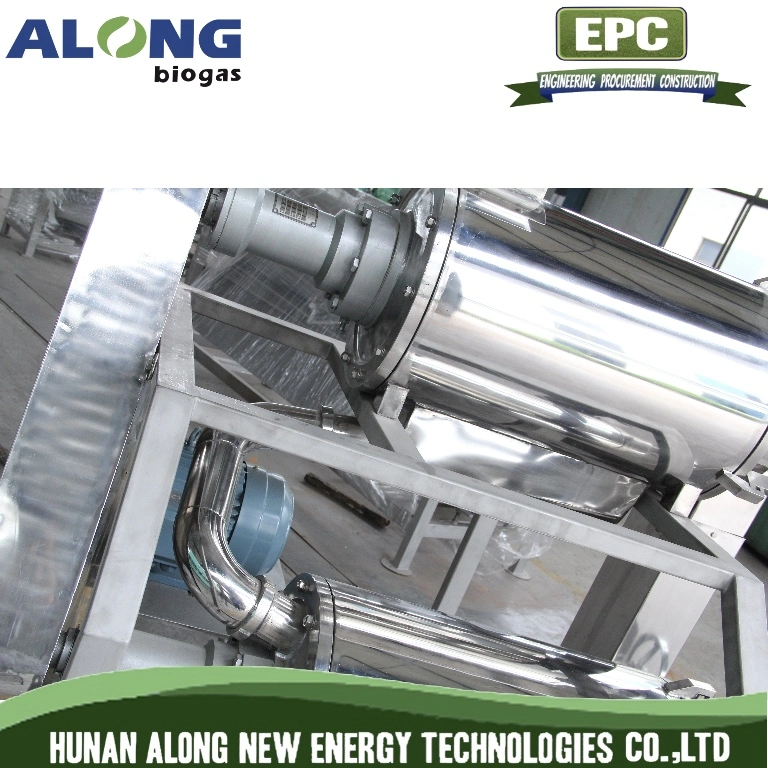

This machine is suitable for beating berries, pome fruits and vegetables. Its characteristics: automatic separation of pulp and residue (skin, seeds, nuts); it can be combined in the production line for flow operation, and can be used as a stand-alone production. All the places in contact with materials are made of 304 stainless steel and high-quality edible rubber, with good corrosion resistance, no contaminants, and food hygiene. This machine only needs to change screens of different specifications and adjust the lead angle of the scraper to change different beating speeds and obtain satisfactory results. This machine has the advantages of simple operation, convenient cleaning, safety and sanitation, continuous feeding, wide application range, etc. It is an ideal equipment for fruit and vegetable processing.
2 Model
Model | Capacity (kg/h) | power(kw) | Speed (r/min) | Dimension(mm) |
ALB1.5 | 1000-1500 | 4 | 800 | 1450×770×1650 |
ALB2.0 | 1500-2000 | 7.5 | 1535×1420×1680 | |
ALB5.0 | 3000-5000 | 15 | 1900×1500×1700 | |
ALB7.5 | 7000-7500 | 22 |
| 2300*1600*1750 |
3 Utilization
It is one combined juicing machine which together the pitting, beating and juicing.
It is proper for lot kinds of fruits, for example tomato, Kiwi fruit, ginger, pineapple, apple, pear, grape, orange, mangoes and all kinds of vegetables juice.
The equipment is used for fruit and vegetable class material beating, to slag ,slurry automatic separation
Especially suitable for the stone fruits such as mango, peach processing
To nuclear beater contains common beater sieve, rotor parts
4 The screen mesh size
The screen mesh has Φ0.5, 0.8, 1.0, 1.2, 1.6 and other specifications
